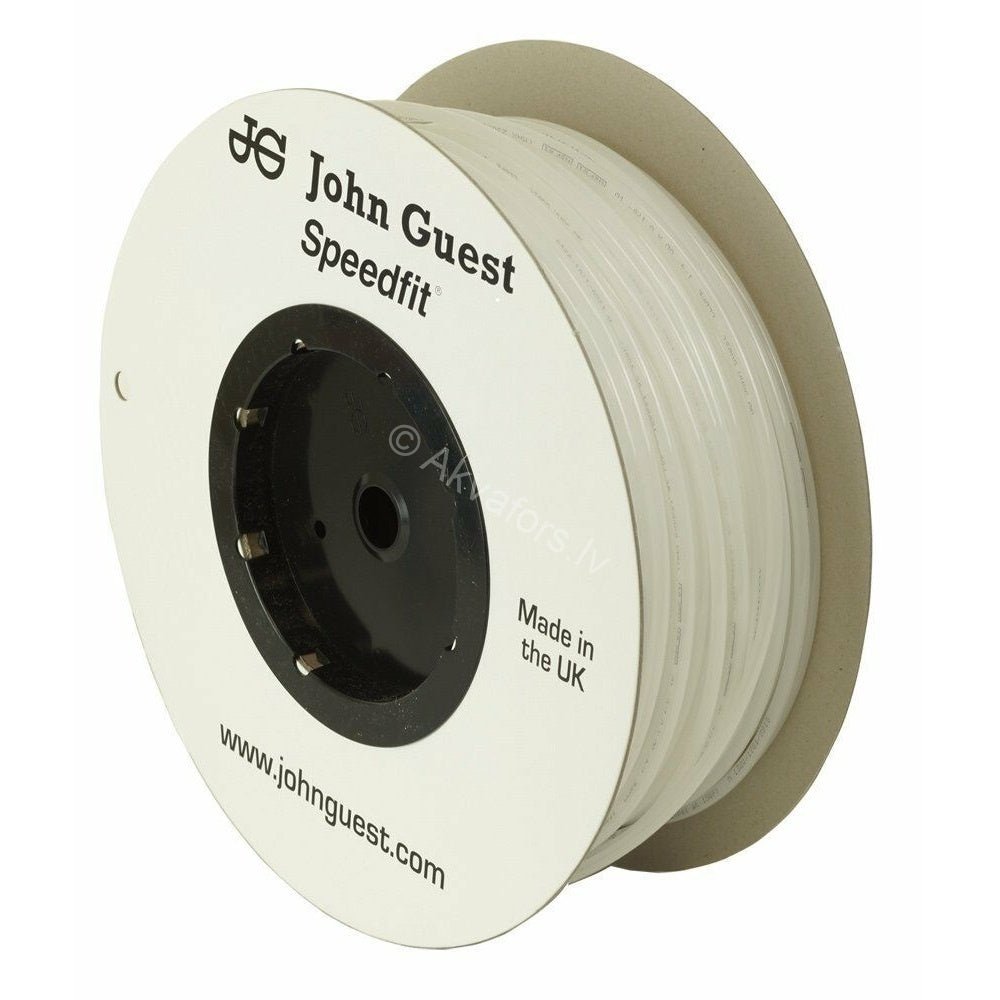

John Guest 8mm LLDPE Tubing

John Guest 8mm Tubing is commonly used in conjunction with John Guest Push Fit fittings for water dispensers and coolers, hot brewing appliances, beverage vending machines, ice makers and beer/drinks dispense.

All John Guest 8mm water pipe is suitable for use in food and beverage applications for potable water and drinks dispense.

Technical Specifications

Outer Diameter (OD): 8mm
Inner Diameter (ID): 6mm
Tube Tolerance: +0.05/-0.10mm
Minimum Bend Radius: 30mm

Potable Water Applications

John Guest LLDPE pipe is suitable for potable cold water applications with a maximum chlorine content of 4 parts per million (4ppm). Heating water above 20°C and/or pressures above the maximum will significantly reduce service life. Direct exposure to sunlight will also significantly reduce its useful service.

UV Resistance

Only black LLDPE tube should be installed in areas exposed to any light if biofilm growth is considered an issue. In this case, any other coloured tube must be protected from light exposure. Black LLDPE tube is also UV stabilised and can be installed where exposed to direct or indirect sunlight (UV).

Tube Inserts

If the LLDPE tube is used in a warm water system a tube insert is necessary.
