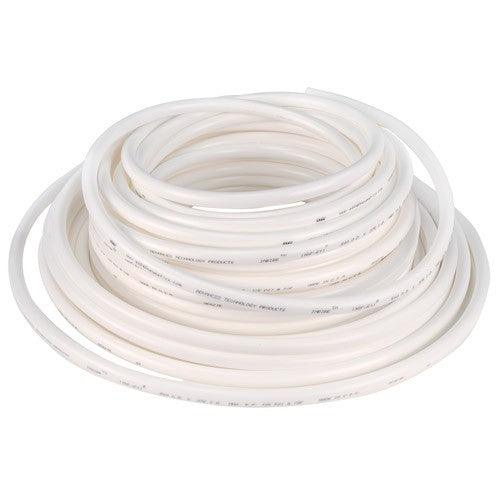

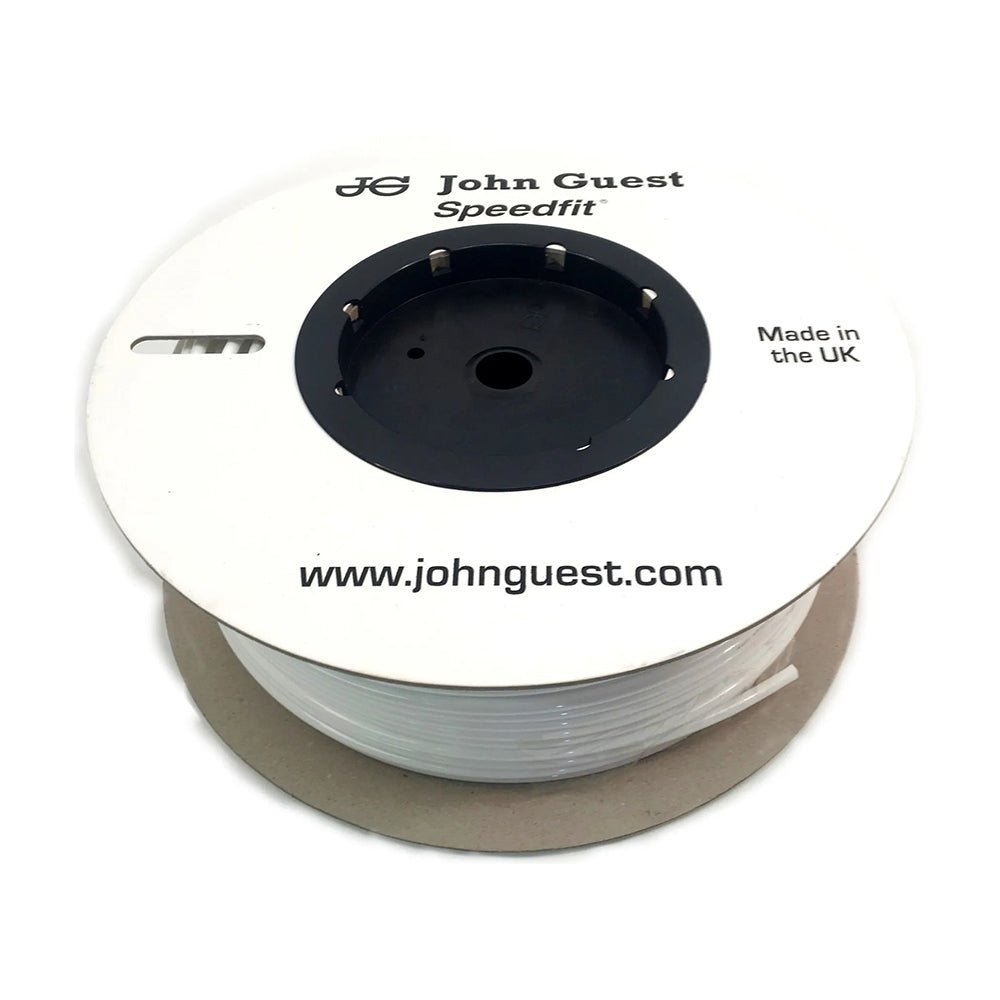

John Guest 1/4" White LLDPE Tubing
MPN
£2.99 inc. VAT
In stock
Ready to dispatch
-
Food Grade LLDPE
Calculating delivery...
FREE Express Delivery
Orders over £50 to UK mainland
Next Day Delivery
£5.99 (order before 3pm)
Standard Delivery
£2.99 for 2-3 working days
*Applies when Next Day Delivery is selected at checkout.
Delivery information
Order before the delivery cut-off for the fastest available dispatch. Delivery options and final prices are confirmed at checkout.
Need help choosing the right fitting?
Our size guide and fitting advice help you choose the right connection first time.
View Size Guide
The Filter Flair Correct Fit Promise
Not sure which fitting you need? Our experts are here to help you choose the right size and fitting for your system.
Learn moreWhat our customers say
John Guest 1/4" Tubing is commonly used in conjunction with John Guest Push Fit fittings for water dispensers and coolers, hot brewing appliances, beverage vending machines, ice makers and beer/drinks dispense.
Technical Specifications
Outer Diameter (OD): 1/4"
Inner Diameter (ID): 0.170"
Tube Tolerance: +0.001/-0.004"
Minimum Bend Radius: 1.00"
Potable Water Applications
John Guest LLDPE tubing is suitable for potable cold water applications with a maximum chlorine content of 4 parts per million (4ppm). Heating water above 20°C and/or pressures above the maximum will significantly reduce service life. Direct exposure to sunlight will also significantly reduce its useful service.
UV Resistance
Only black LLDPE tube should be installed in areas exposed to any light if biofilm growth is considered an issue. In this case, any other coloured tube must be protected from light exposure. Black LLDPE tube is also UV stabilised and can be installed where exposed to direct or indirect sunlight (UV).
Tube Inserts
If the LLDPE tube is used in a warm water system a tube insert is necessary.
- SKU
- TU14W1M
- Brand
- John Guest
- Dimensions
- 1/4" diameter
- Material
- LLDPE
Official John Guest video
How to make a John Guest standard fitting connection
This short installation video shows the standard push-fit connection process for drinks dispense and water treatment fittings.Orders are usually dispatched within one working day. Free UK delivery is available on orders over £50, with next day delivery available at checkout.
Product Details
John Guest 1/4" Tubing is commonly used in conjunction with John Guest Push Fit fittings for water dispensers and coolers, hot brewing appliances, beverage vending machines, ice makers and beer/drinks dispense.
Technical Specifications
Outer Diameter (OD): 1/4"
Inner Diameter (ID): 0.170"
Tube Tolerance: +0.001/-0.004"
Minimum Bend Radius: 1.00"
Potable Water Applications
John Guest LLDPE tubing is suitable for potable cold water applications with a maximum chlorine content of 4 parts per million (4ppm). Heating water above 20°C and/or pressures above the maximum will significantly reduce service life. Direct exposure to sunlight will also significantly reduce its useful service.
UV Resistance
Only black LLDPE tube should be installed in areas exposed to any light if biofilm growth is considered an issue. In this case, any other coloured tube must be protected from light exposure. Black LLDPE tube is also UV stabilised and can be installed where exposed to direct or indirect sunlight (UV).
Tube Inserts
If the LLDPE tube is used in a warm water system a tube insert is necessary.
Specifications
- SKU
- TU14W1M
- Brand
- John Guest
- Dimensions
- 1/4" diameter
- Material
- LLDPE
Installation
Official John Guest video
How to make a John Guest standard fitting connection
This short installation video shows the standard push-fit connection process for drinks dispense and water treatment fittings.Delivery & Returns
Orders are usually dispatched within one working day. Free UK delivery is available on orders over £50, with next day delivery available at checkout.
