Fitting an under-sink water filter can be a tidy upgrade, but it is not a job to start by ordering the first system that looks right. The cupboard, cold-water feed, tap arrangement and the manufacturer’s fitting instructions all need to line up first.
Start by checking the exact system manual, measuring the available space and confirming how the filter connects to your cold-water supply. If you need to alter fixed pipework or are unsure about the connection, use a qualified plumber.
Quick answer
- Choose the system before buying fittings: each system has its own instructions and connection requirements.
- Measure the cupboard, including the space needed to change the cartridge later.
- Locate the cold-water isolation valve and check that it works before any installation starts.
- Follow the supplied manual for flushing, leak checks and replacement intervals.
1. Check what the system actually needs
Under-sink filters are not all installed in the same way. Some use a dedicated drinking-water tap; others are supplied for a particular tap arrangement. Some connect with quick-connect tubing, while others use threaded fittings or a specific installation kit.
Read the installation information for the exact model before buying adapters. For example, Omnipure’s Q5586 performance data sheet says installers should note the filter’s flow direction, seat quick-connect tubing fully, flush a new cartridge before use and check for leaks. Those instructions apply to that product, not every filter system.
For the BMB Zada and Zada Pro systems, the installation guide describes a feed taken from the cold-water supply and asks the installer to turn off the main water supply before starting. It also calls for clear space below the unit so the filter can be removed at service time. Treat the manual supplied with your chosen system as the deciding document.

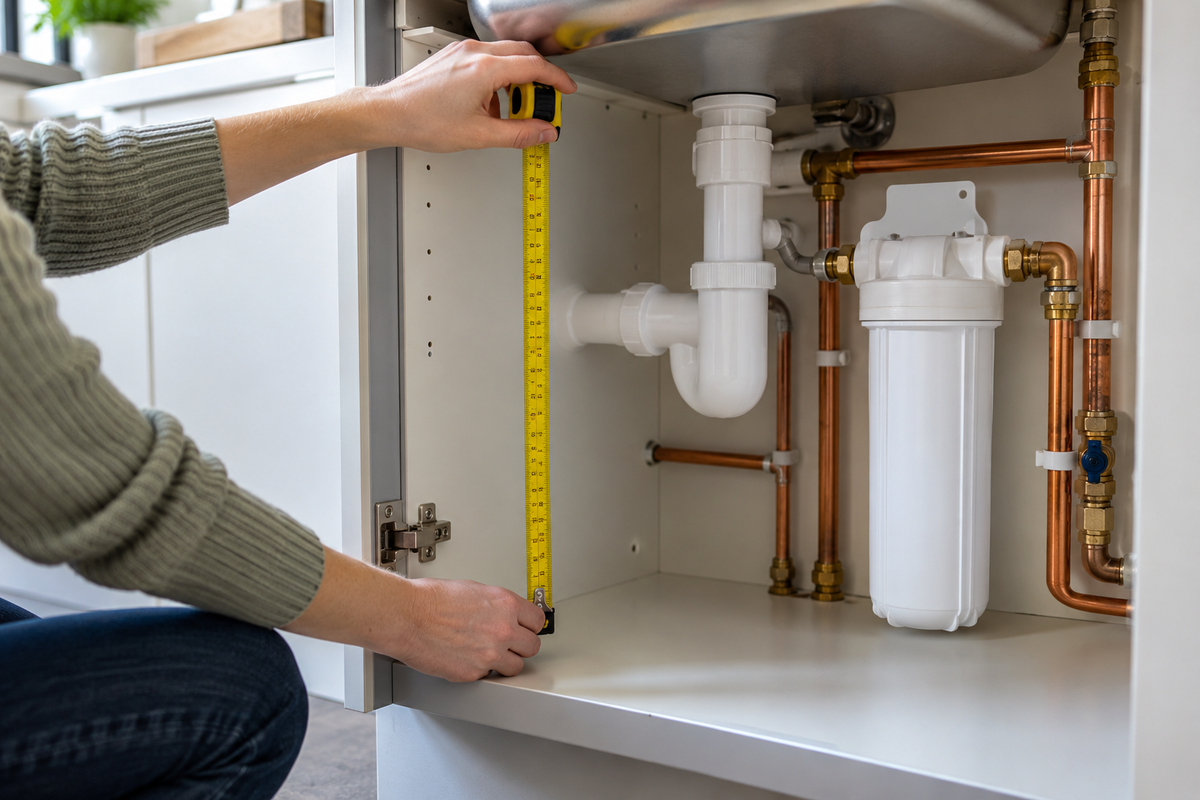

2. Measure the cupboard before ordering
Open the cupboard and look beyond the empty floor area. Measure the height below the sink bowl, the distance around waste pipes, the path for inlet and outlet tubing, and the room needed to remove a cartridge. A system that fits on installation day can still be awkward to maintain if a shelf, pipe or bin blocks the filter.
- Height: allow for the filter head, housing or bracket, plus the clearance specified for cartridge changes.
- Depth: leave enough room for doors to close without crushing tubing.
- Access: make sure you can reach the isolation valve and the filter without removing half the cupboard contents.
3. Identify the cold-water connection
A drinking-water filter should be fed from the cold-water supply, using the connection method shown in its manual. Do not guess from the look of a valve, pipe or thread. UK kitchens use different fittings, and a connection that appears close enough may not seal or may not be suitable for the system.
Before any work begins, find the local isolation valve and check it operates. Keep a bowl and dry cloth nearby for residual water when a supply is isolated. If the valve is seized, corroded, inaccessible or you need to modify fixed plumbing, stop there and arrange a qualified installer.
Water Regulations UK explains that the water-fitting regulations protect drinking water through requirements for plumbing systems. That is one reason to use the correct parts and follow the system documentation rather than improvising a connection.
4. Decide whether you need a separate filtered-water tap
Many under-sink systems supply a dedicated drinking-water tap. That can mean fitting the tap through the worktop or sink and routing the tubing beneath it. Check the exact tap requirements and your worktop material before drilling anything.
If your chosen system is intended to work with a three-way tap or an existing tap arrangement, confirm that in the manufacturer’s instructions. The tap connection is system-specific, so a generic fitting guide is not enough evidence to drill a hole or buy an adapter.
5. Fit and test only to the supplied instructions
Once the system, fittings and location are confirmed, follow the manufacturer’s instructions in order. Keep the filter upright or mounted as specified, observe the marked flow direction, and use only the connection method the manual calls for.
After the water supply is restored, inspect every connection slowly and carefully. The Q5586 data sheet instructs users to flush the new cartridge and check for leaks. If a connection leaks, do not keep tightening blindly. Isolate the supply, inspect the fitting and tubing, then follow the manual or contact an installer.
6. Record the installation and service date
Once the system is working, record the model, cartridge code and installation date inside the cupboard or in a calendar. This makes the next replacement far less guesswork-heavy and helps you buy a confirmed replacement rather than one that merely looks similar.
When to call a plumber
Get professional help if you need to alter fixed pipework, drill a difficult worktop, cannot isolate the cold-water supply, see a damaged valve or are not confident that the connection matches the manual. An under-sink filter should make life easier; it is not worth turning into a leak under the kitchen sink.
Choose a system after you have measured
Once you know what will fit and how it will connect, compare complete systems with a clearer picture of what you need. Start with the Omnipure Q5586 Under-Sink Drinking Water Filter System or the BMB Zada Under Sink Ultrafiltration System, then check each product’s current specification and supplied installation information before ordering. If your setup needs an adapter between domestic pipework and a filter connection, review the John Guest 15mm to 3/8 inch Push Fit Installation Kit against the exact system requirements.
